Weatherproof Enclosure for Aqara Door & Window Sensor (STL Download)

THIS IS A DIGITAL FILE DOWNLOAD, NOT A PHYSICAL ITEM

Now you can use your Aqara sensors outside! You can even use zip ties to mount them!

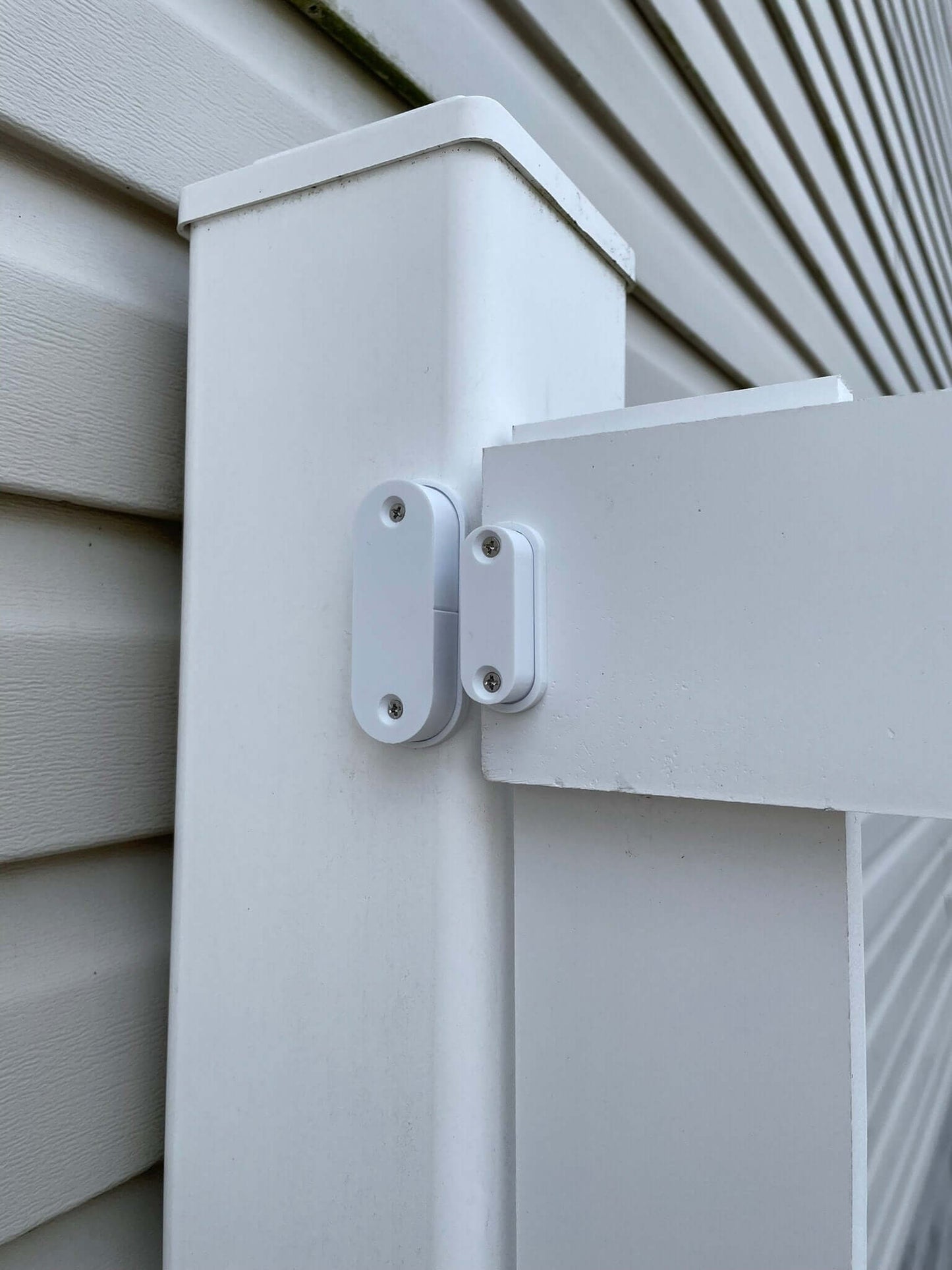

This weatherproof enclosure for the Aqara Door & Window Sensor (Including T1 version) will help shield your sensor from rain and snow in an outdoor environment, while also providing multiple mounting methods. Choose between mounting with wood screws, zip ties, or adhesive! The cover for the sensor enclosure includes a channel for a nitrile gasket to help prevent water from entering the enclosure.

The enclosure includes mounting holes with a 4mm diameter to perfectly fit a #6 counter-sunk flat-head wood screw. There are also zip tie slots which will fit most standard zip ties under 4.5mm wide. When using zip ties, the enclosures and covers are secured using M3 bolts and hex nuts pressed into the cutouts in the covers.

While the magnet doesn't necessarily require a weatherproof enclosure since it's just a simple magnet, this enclosure keeps things looking tidy while making it easier to mount both parts of the sensor.

Dimensions

Sensor Enclosure: 72mm x 27mm x 16mm (LxWxH)
Magnet Enclosure: 44.5mm x 15.5mm x 14mm (LxWxH)

Recommended Parts and Sizes

Gasket Size: 40mm OD x 37mm ID (1.5mm cross-section)
Mounting Screws: (x4) #6 counter-sunk flat-head
Bolt/Nut Size: (x4) M3x16mm counter-sunk flat-head bolt, (x4) M3 hex nut

Recommended Print Settings

Material: PETG
Layer Height: 0.20mm
Infill: 20% Gyroid
Walls: 3
Top/Bottom Shell Layers: 4

This listing is only for the STL files, the enclosures or sensors themselves are NOT included!

This work is licensed under the Creative Commons Attribution-NonCommercial 4.0 International License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc/4.0/ or send a letter to Creative Commons, PO Box 1866, Mountain View, CA 94042, USA. Reselling physical reproductions of this design is not permitted.
